Cleveland’s Push-type master cylinders are located in the cockpit on each of the pilot’s rudder pedals. They are used to turn a force into a pressure to actuate the brakes on an aircraft. The push-type master cylinders require a separate remotely mounted reservoir or connection to a low-pressure aircraft return system.

&nbsp;

Push-type master cylinders are the most common type of master cylinder. The aircraft’s brake pedal linkage is set up to push the rod of the master cylinder to engage the brake discs. Once the brake discs are engaged, the master cylinder transforms the pilot’s input force into a hydraulic pressure at the brakes. The brake pistons then reverse the process and transform the hydraulic pressure into a force against the brake discs. This force is used to stop the discs from rotating and ultimately stop the aircraft.

&nbsp;

&nbsp;

Selection of a properly sized master cylinder is important. There are several features to consider when choosing a master cylinder. Volume Output is the most important and is governed by the volume requirement of the brakes and the compliance of the rest of the system. Choosing a master cylinder with too low a volume output will not allow the brakes to be filled properly and not pressurize enough to stop the aircraft.

&nbsp;

&nbsp;

The master cylinder’s Bore Size directly affects the amount of pedal effort. A large bore master cylinder will make the pedal effort higher than one with a smaller bore.

&nbsp;

&nbsp;

APPLICATIONS

&nbsp;

General aviation, light jets, turboprop passenger, and cargo aircraft

Home

Products

Hydraulics

Standard Master Cylinders

10-22

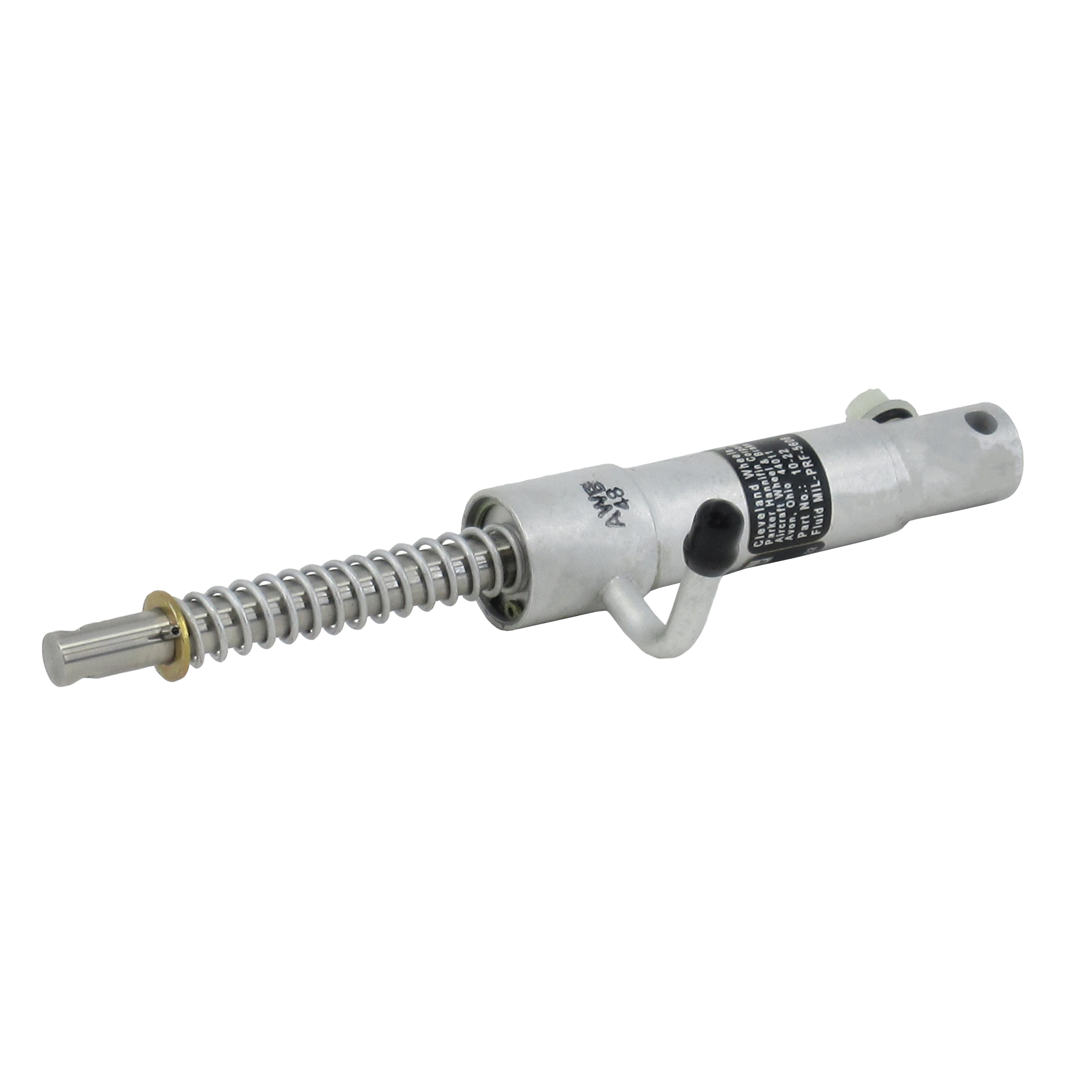

Push-type master cylinders are the most common type of master cylinder. The aircraft’s brake pedal linkage is set up to push the rod of the master cylinder to engage the brake discs. Cleveland’s push-type master cylinders have been designed with hardened steel rods, aluminum housings, and pistons that have low seal friction for a long, reliable service life.

Exploded View 10-22

Product Exploded View

Technicians Service Guide (rev. 25)

Technician's Service Guide

Actuation Type

Bore Diameter

FAA-PMA Approved / Installed under aircraft Type Certificate

Certification Type

Fluid Type

Operating Temperature Range

Rated Pressure

Stroke

Piper Aircraft (PA-28-180 Cherokee/Archer, PA-28R-180 Cherokee/Arrow 180, PA-28-201T, PA-32R-300 Cherokee/Lance, PA-32RT-300 Lance II, PA-32RT-300T Turbo Lance II, PA-34-200T Seneca II, PA-32-301, PA-32-301T Saratoga and SP Series, PA-34-200T Seneca III, PA-32-300 Cherokee Six 300, PA-32-260 Cherokee Six “260”, PA-32R-300 Cherokee/Lance, PA-32RT-300 Lance II, PA-32RT-300T Turbo Lance II, PA-34-200 Seneca, PA-28-150 Cherokee, PA-28-160, PA-28-150 Cherokee, PA-28-160, PA-28-151 Cherokee/Warrior, PA-28-151 Cherokee/Warrior, PA-28-160, PA-28-161 Cherokee/Warrior II, PA-28-161 Cherokee/Warrior II, PA-28-181 Cherokee/Archer II, PA-28-181 Cherokee/Archer II, PA-28-236 Dakota, PA-28R-201, PA-28R-201T, PA-28RT-201, PA-32-260 Cherokee Six “260”, PA-32-260 Cherokee Six “260”, PA-34-200 Seneca, PA-34-200 Seneca, PA-32-300 Cherokee Six 300, PA-32-300 Cherokee Six 300, PA-32-260 Cherokee Six “260”, PA-34-200 Seneca, PA-32-300 Cherokee Six 300, PA-28-236 Dakota, PA-28RT-201T, PA-32R-301(HP), PA-32R-301(SP), PA-32R-301TPA-38-112, PA-28-180 Cherokee/Archer, PA-28-235 Cherokee/Pathfinder, PA-28-140 Cherokee/Cruiser, PA-28-180 Cherokee/Archer, PA-28R-200 Cherokee/Arrow 200, PA-28R-200 Cherokee/Arrow 200)

Platform

At Cleveland Wheels & Brakes connecting customers to quality equipment is our #1 goal.  Depending on the scope of your needs it is important for you to have the right options to fit your need and keep you flying safely.  Use our Find by Aircraft tool or contact us to select quality equipment for your aircraft.
